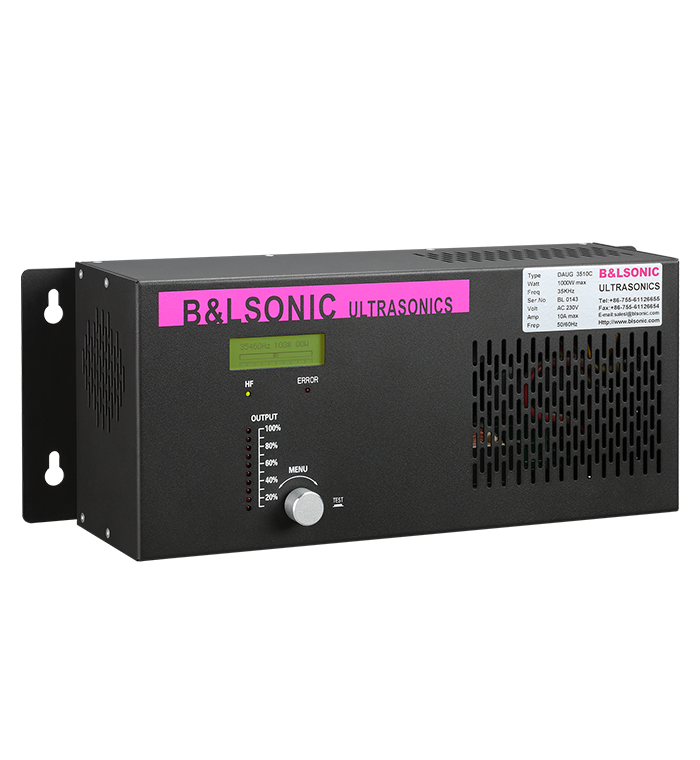

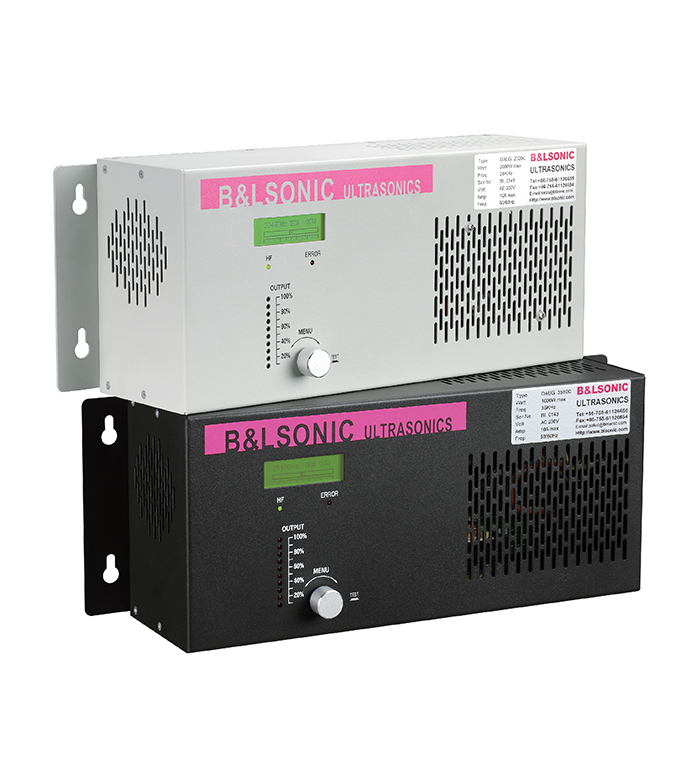

DAUG XXYYL Digital Ultrasonic Generator

The DAUG XXYYL Ultrasonic generators feature a digital automatic frequency modulation system.
The ultrasonic constant amplitude system can automatically track and store the operating frequency of ultrasonic components, ensuring consistent amplitude performance during ultrasonic operation. This capability enhances the stability and reliability of the ultrasound system's processing performance.
Product Advantages
Simple modular installation
Automatic frequency tracking system
Ultrasonic amplitude constant output
Ultrasonic amplitude adjustment
Ultrasonic soft start device (SOFT START)
Overload device protection system
LCD visual display of multiple parameters for real-time monitoring of welding state
Multiple splicing modes and monitoring window (optional function)
Technical Parameters






DAUG XXYYL

20k

30k

35k

40k

Power

1000W/1500W/2000W

3000W/4000W

2000W

5400W/1000W

800W

Power Input

1000W/5A、1500W/7A、

2000W/10A、3000W/15A

AC220V 1φ50/60Hz

4000W/15A

AC380V 3φ50/60Hz

2000W/10A

400W/2A、1000W/5A

AC220V 1φ 50/60Hz

800W/5A

AC220V 1φ 50/60Hz

Amplitude

adjustment

50%-100%

50%-100%

50%-100%

50%-100%

Dimensions

1000W/1500W/2000W

432×163×105mm

3000W/4000W

487×181×162mm

432×163×105mm

432×163×105mm

432×163×105mm

Weight

5.3kg

8.2kg(3000W)

4.5kg

4.2kg(400W)

5.0kg(1000W)

5.1kg
