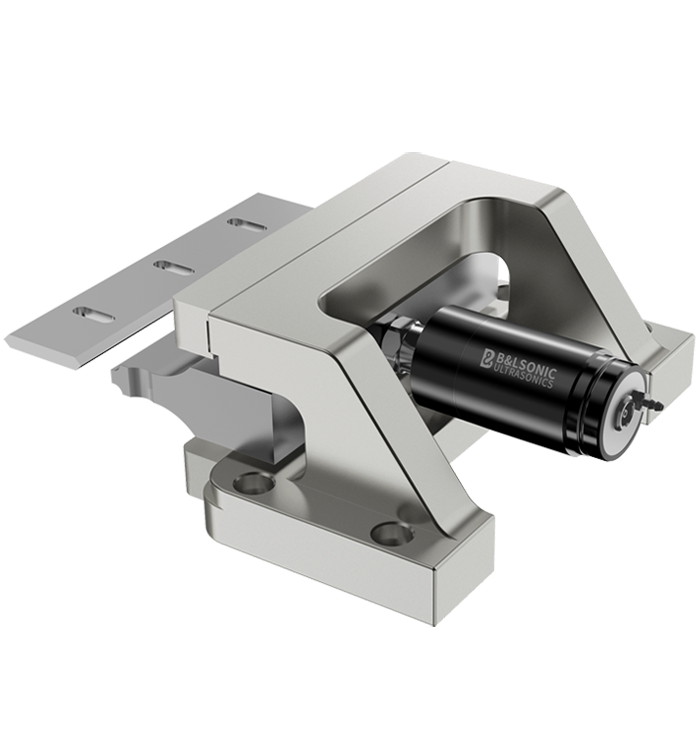

Ultrasonic Horizontal Sealing & Welding Module

Ultrasonic welding is demonstrating increasingly clear advantages in the packaging industry.
Packaging materials are sealed after being heated under ultrasonic vibration at a high frequency of 20~40 kHz, which demonstrates a pretty clear advantage in sealing compared with thinner or thicker packaging materials. It not only shortens the welding time and improves efficiency, but also saves energy and packaging materials.
Horizontal Sealing & Welding Module
Compatible with a wide range of films
Minimum single welding time: 0.1s (Adjustable)
Sonotrode length: up to 520 mm
Customizable tooth shape
Stable performance even in different working environments
Compact design allows ease of integration into various packing machines
Airtight welds despite contamination in the sealing area
Cold sealing with no thermal impact on welds
Excellent sealing effects even under varied ambient temperatures
The digital ultrasonic generator allows for accurate parameter adjustment and stable output and ensures safer multi-protection
Technical Parameters

Frequency  [kHz]

35k

30k

20k

Operating Pressure [N]

50-900N

50-2000N

50-10000N

Weld Width [mm]

1-20mm

1-20mm

1-20mm

Speed [PCS/min]

1-100PCS

1-100PCS

1-100PCS

Generator Power [W]

400/1000W

1200/2000W

1000-5000W

Power Load [V]

220 V

220V

220V/380V
