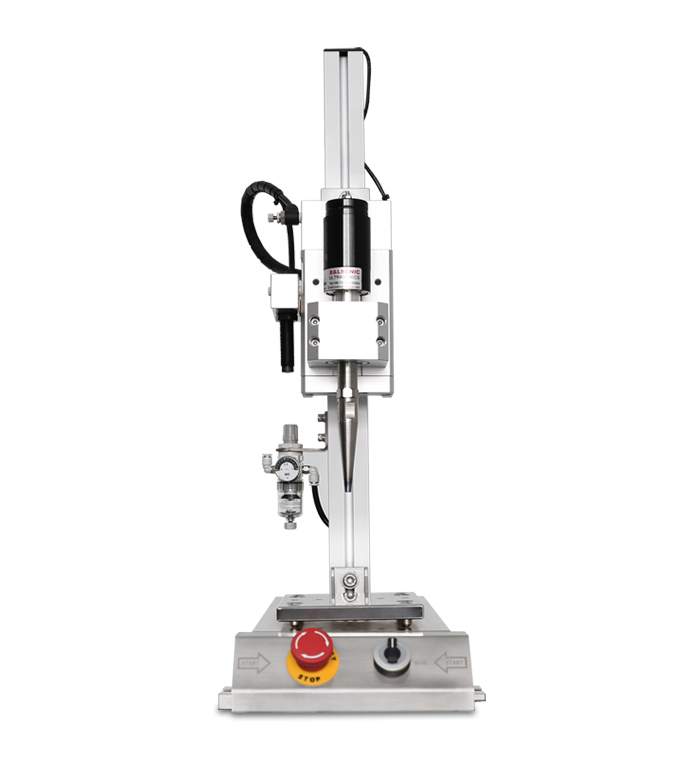

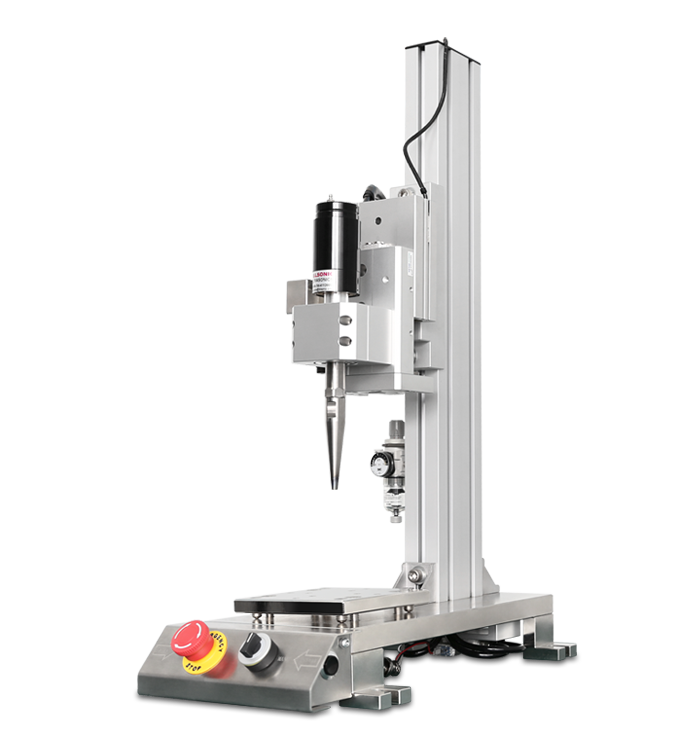

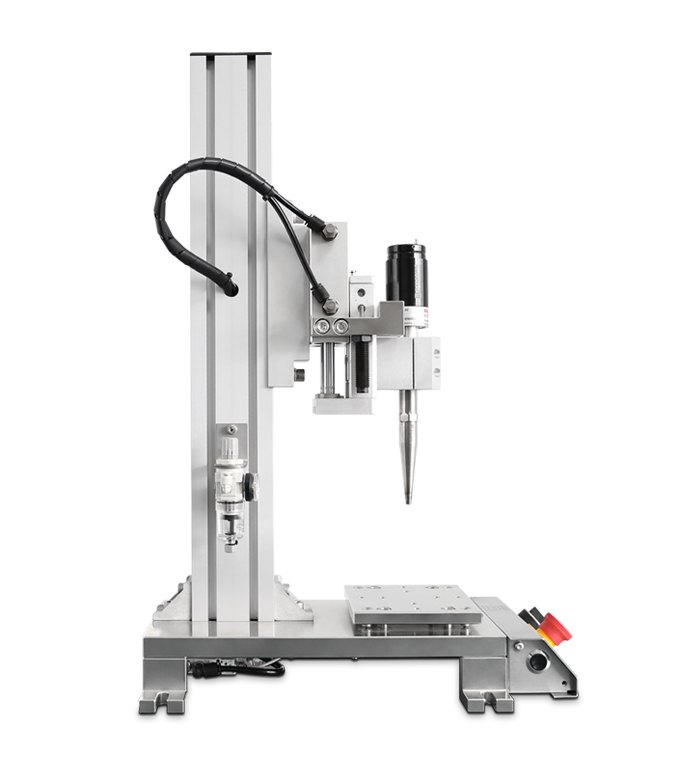

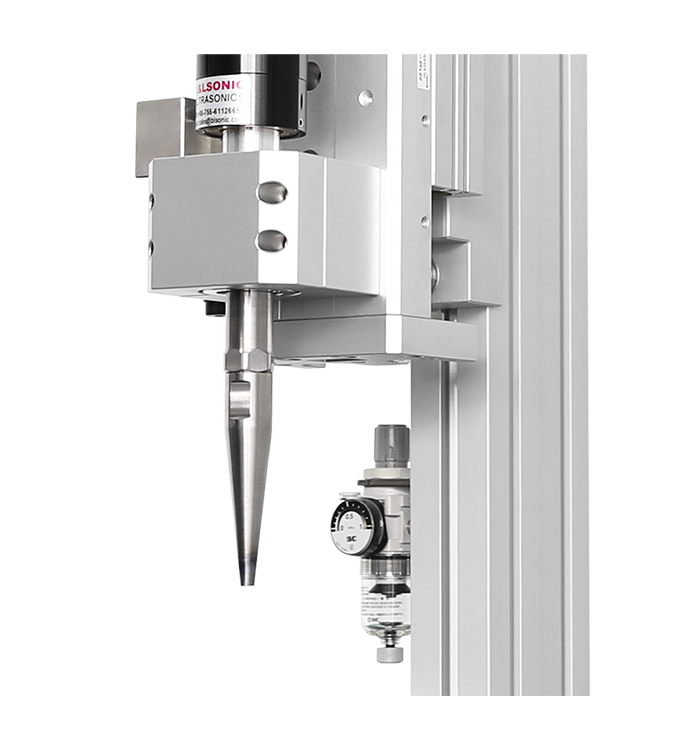

MINI Suture Welding Machine

Ultrasonic welding equipment for medical surgical sutures and barbed wires is compact and portable. It can weld a variety of wires of different specifications and meet stricter use requirements from customers.
Ultrasonic Welding Features
Compatible with a wide range of wires (PDO, PPDO, PGCL, PCL, and other absorbable sutures)
No manual knotting, and more convenient to use
Fast welding speed, and high production efficiency
Firm welding rings that are not prone to come off, Lessening the risk of injury to patients
Products that have been welded have no excess wire tail. They are finished at one time, without trimming
Finished products have neither burrs nor crushes, with stable strength (adjustable depending on strength requirements)
Welding rings passing the 60°C high-temperature sterilization test (test duration: up to two months) and reaching the required strength
Excellent welding effects even under varied ambient temperatures
Stable equipment performance, with fixture precision up to ±0.01mm
The digital ultrasonic generator allows for accurate parameter adjustment and stable output and ensures safer multi-protection

35K MINI Welding Machine

Specification Parameters

Wire Gauge

2、1、0、2-0、3-0、4-0、5-0AWG

Tail Ring Diameter

1.5、3、4、5、6mm

Welding Speed

4-8S/wire (According to production proficiency)

Welding Area

4-6mm

Power

400W

Power Supply

1φ 220 V
