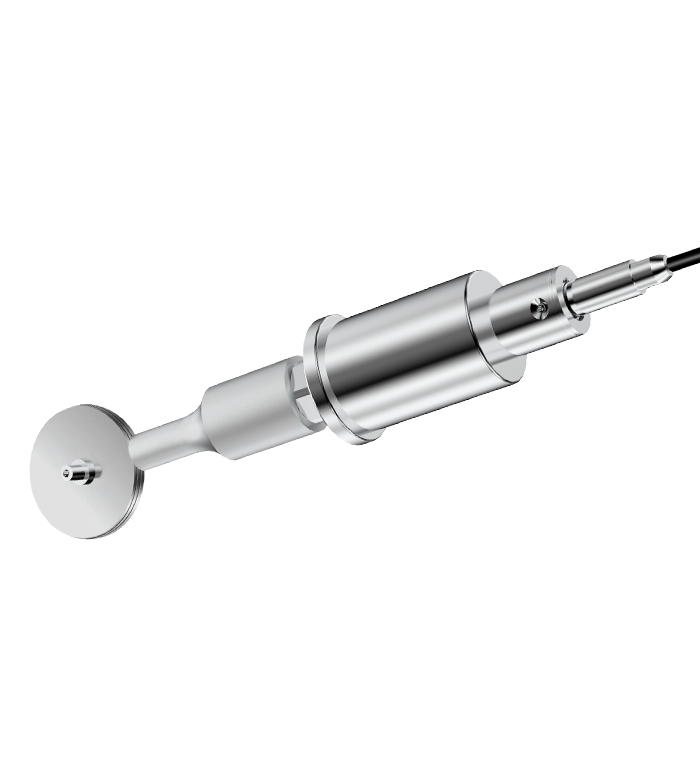

Ultrasonic Rotary [vertical director] Welding Unit

The advantages of ultrasonic welding in the packaging industry are becoming increasingly apparent.
Longitudinal welding can also be used for membrane welding and fabric welding.
Its advantage is its small size, making it easy to integrate into packaging machines with smaller installation space.

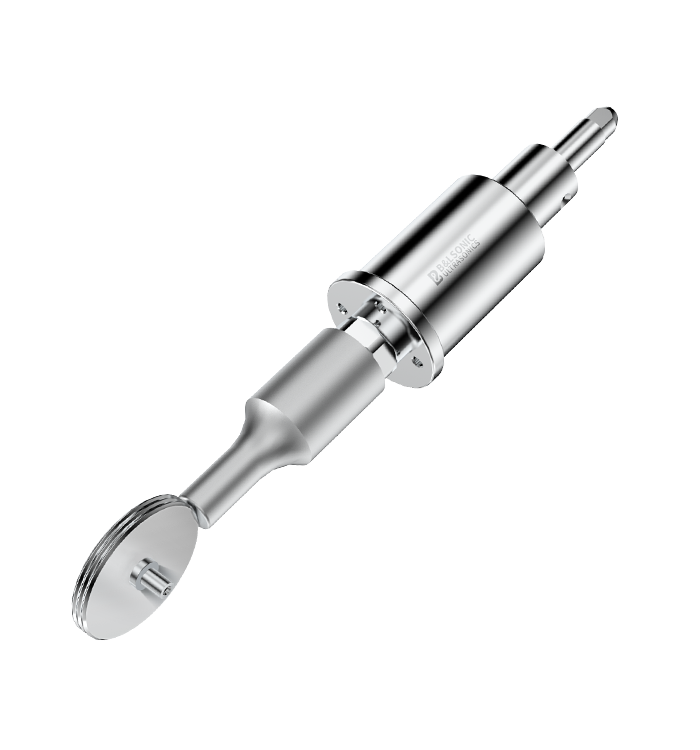

Rotary [vertical director] Welding Module
Wide compatibility with film materials (non-woven fabric, aluminum plated film, multi-layer composite film, biodegradable film, PP film, etc.)
Speed up to 80 m/min (adjustable)
Even in different environments, product welding remains stable
Spot contact welding with low energy requirements
Compact module structure, easy to integrate into various mechanical equipment
There is contamination at the sealing area, but the welding is still tight
Cold sealing characteristics, sealing products will not be affected by heat
Not affected by external environmental temperature, it can effectively achieve sealing
Digital ultrasonic generator, capable of precise parameter adjustment and stable output, with safer multiple protections
技术参数

Frequency kHz

20k

30k

35k

Maximum value of compressed air bar

3-8

3-8

3-8

Welding width mm

0.1-12

0.1-12

0.1-12

Speed [m/min]

1-80

1-80

1-80

Generator W

1000/2000

1200/2000

400/1000

Power load V

1φ 220 V

1φ 220 V

1φ 220 V
