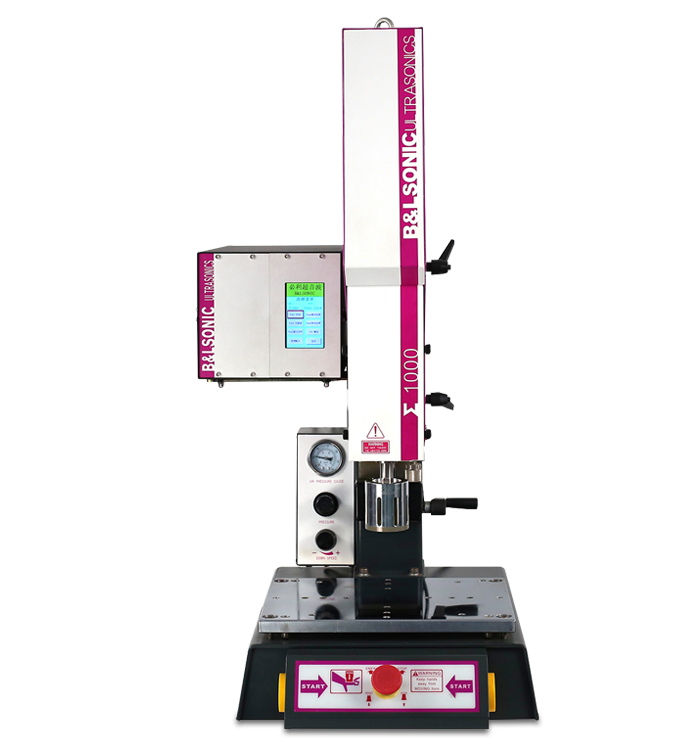

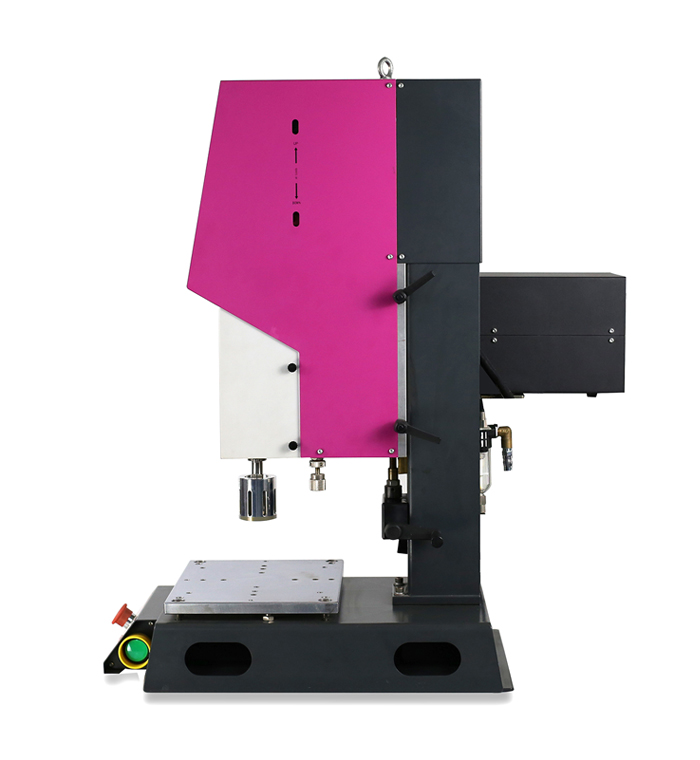

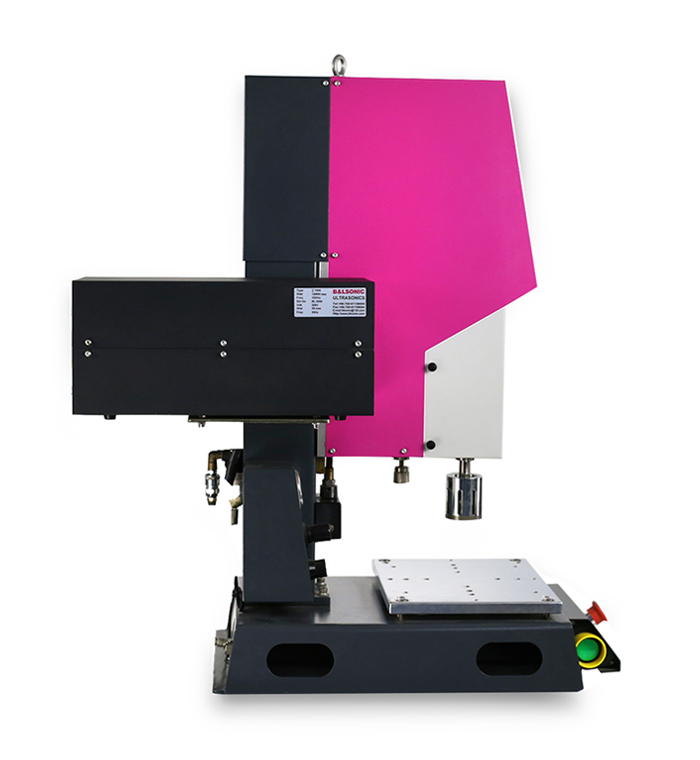

Σ1000 Ultrasonic Plastic Welding Series

The Ultrasonic Plastic Welding Machine Σ1000 Series is a complete ultrasonic welding device that integrates ultrasonic digital generators and controllers with ultrasonic welding presses.

The Σ1000series has a variety of welding modes to meet customers' more stringent welding requirements.

Advanced Control Machine

Color touch screen

Chinese and English use interface.

Germany designed digital ultrasonic generator, which can accurately adjust and stabilize various parameters, can safely protect the control box

Electronic pressure measuring device

Precision electronic ruler for welding depth control with accuracy of ±0.01mm

4 different trigger modes

5 different welding modes (time, energy, maximum power, relative position, absolute position welding mode)

Welding parameter data storage

Ultrasonic amplitude adjustment 50%-100%

Ultrasonic frequency automatic tracking

Quality management function

Printer output function (optional)

Technical Parameters

Σ1000	20kHz	35kHz	40kHz
Power	1000W/1500W	1000W	800W
Pressure	1000N	1000N	1000N
Power Input	1000W/5A、1500W/8A AC 220V ±10% 50/60Hz	1000W/5A AC 220V ±10% 50/60Hz	800W/5A AC 220V ±10% 50/60Hz
Electric Box Size	420 x 211 x 185mm	465 x 211 x 185mm	465 x 211 x 185mm
Electric Box Weight	10kg	10kg	10kg
Machine Size	815 x 478 x 1182mm	815 x 478 x 1182mm	815 x 478 x 1182mm
Machine Weight	90kg	90kg	90kg
