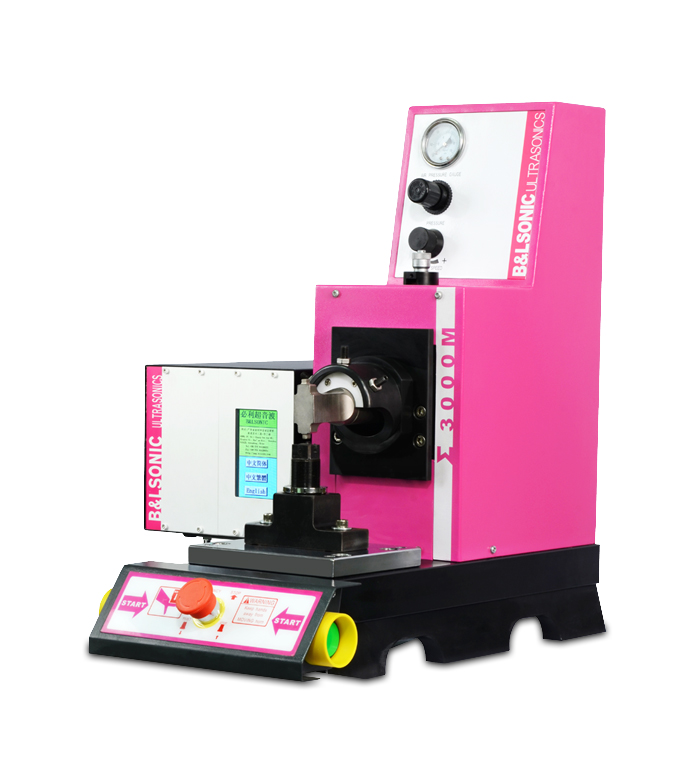

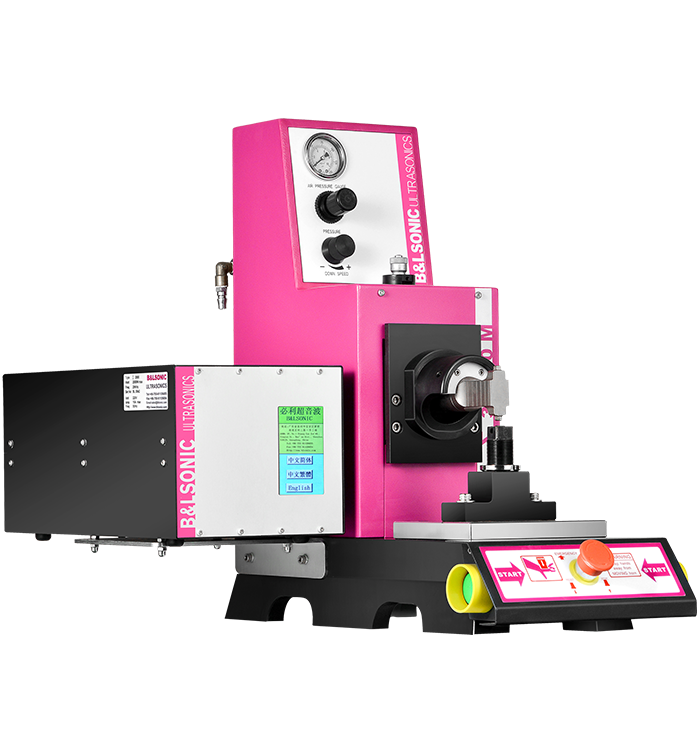

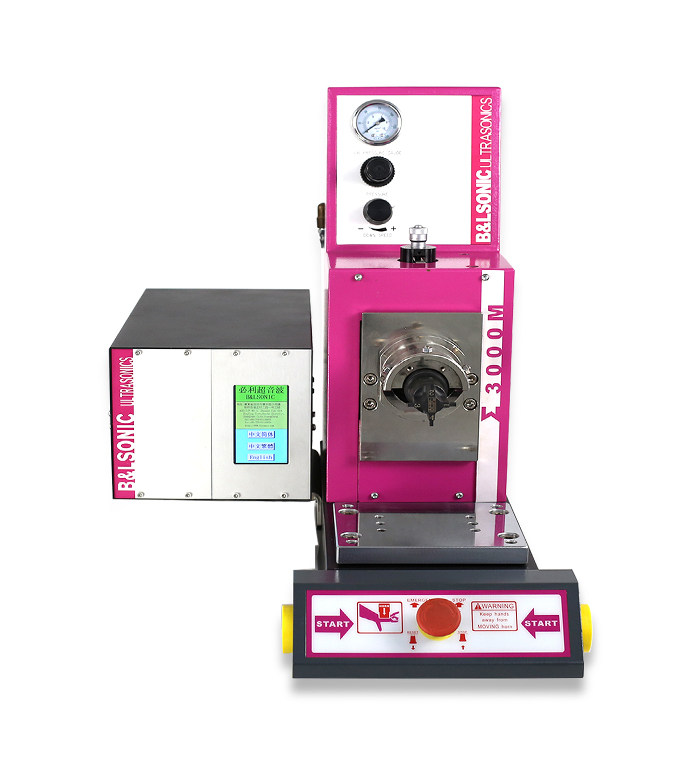

Σ3000M Ultrasonic Metal Welding Series

The Ultrasonic Metal Welding Machine Σ3000M Series is a complete ultrasonic welding device that integrates ultrasonic digital generators and controllers with ultrasonic welding presses.
The Σ3000M series has a variety of welding modes to meet customers' more stringent welding requirements.
Advanced Controller
Color touch screen
Chinese and English operation interface
German designed digital ultrasonic generator, capable of precise parameter adjustment and stable output, safer multiple protection
Electronic pressure measuring device
Using a precision electronic ruler for welding depth display, with an accuracy of ± 0.01mm
4 different triggering modes
5 different welding modes (time, energy, maximum power, relative position, absolute position welding mode)
Welding parameter data storage
Ultrasonic amplitude adjustment 50% -100%
Ultrasonic frequency automatic tracking
Quality management function
Printer output function (optional)
Technical Parameter
NameΣ3000M
Frequency 20kHz 20kHz
Power 2000W/3000W 4000W/5000W
Pressure 3000N 3000N
Power input

2000W/10A 3000W/15A

AC 220V ±10% 50/60Hz

4000W、5000W/15A

AC 380V ±10% 50/60Hz

Size of electrical box

2000W/420 x 211 x 185mm

3000W/465 x 211 x 185mm

 465 x 211 x 185mm
Weight of electrical box 10kg 11.76kg
Machine size 747 x 467 x 581mm 792 x 467 x 581mm
Machine weight 64.5kg 66.2kg
